GGD AC LOW-VOLTAGE DISTRIBUTION CABINET
GGD AC low voltage distribution cabinet is used for power users such as power plants, substations, factories, and mining enterprises. It serves as an AC 50-60Hz distribution system with a rated working voltage of 380V and a rated working current up to 3150A. It is used for power conversion, distribution, and control of power, lighting, and distribution equipment.
The GGD type AC low-voltage distribution cabinet is a new type of low-voltage distribution cabinet designed based on the requirements of the Ministry of Energy’s power users and design departments, following the principles of safety, economy, rationality, and reliability. The product has the characteristics of high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, strong series and practicality, novel structure, and high protection level. Can be used as a replacement product for low-voltage switchgear.
The GGD type AC low-voltage distribution cabinet complies with national and industry standards.
LOW LOSS
HIGH ENERGY EFFICIENCY
WIDELY APPLICABLE
SEALED OIL TANK
Conditions of Use
- The ambient air temperature shall not exceed+40 ℃ and not be lower than -5 ℃, and the average temperature within 24 hours shall not exceed+35 ℃.
- For indoor installation and use, the altitude of the usage location shall not exceed 2000m.
- The relative humidity of the surrounding air should not exceed 50 ℃ at a maximum temperature of+40 ℃, and a higher relative humidity is allowed at lower temperatures, such as 90% at+20 ℃. It should be considered that condensation may occur accidentally due to temperature changes.
- Pollution level 3.
- The inclination of the equipment during installation with respect to the vertical plane shall not exceed 5 °.
- The equipment should be installed in places without severe vibration and impact, as well as in places where electrical components are not corroded.
Technical Parameters
| Project | Unit | Parameters | |
| Rated voltage | V | AC380 | |
| Rated frequency | HZ | 50 | |
| Rated current | Maximum working current of horizontal busbar | A | ≤ 4000 |
| Maximum working current of vertical busbar | 800、1600 | ||
| Rated short-time withstand current (1s) | kA | 15、30、50 | |
| Rated peak withstand current | kA | 30、63、105 | |
| Dielectric strength | V/1min | 2500 | |
| Rated insulation voltage | V | 660 | |
| Protection grade | IP30/IP40 | ||
| Dimensions (width x depth x height) | mm | 600（800、1000）×600（800、1000）×2200 | |
Application Areas
transportation
industry
Urban Community
agriculture
Related products

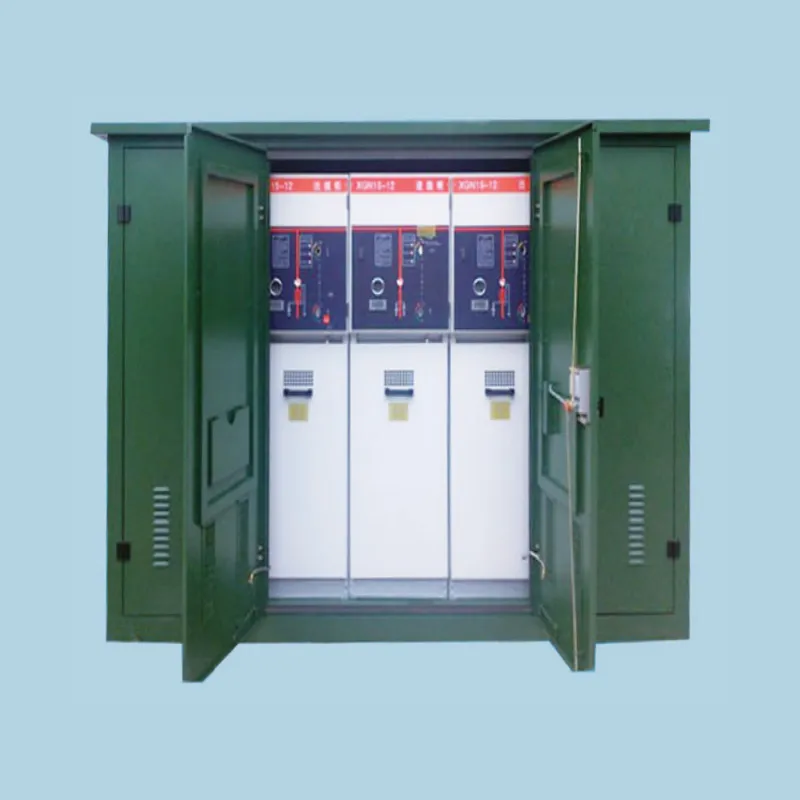

DFW SERIES CABLE JUNCTION BOX
The DFW series cable junction box (also known as cable branch box) is divided into two types: with switch and without switch. It is an outdoor high-voltage electrical equipment with a rated voltage of 12KV and a rated current of 630A, used for connecting and tapping power cables. DFW series high-voltage cable junction boxes are composed of electrical elements, secondary elements and boxes, such as electrified touchable shielded silicone rubber cable connectors, cable accessories, SF6 load switches or ring network cabinets, vacuum circuit breakers, etc. They fully and flexibly use the advantages of cable connectors in series and parallel connection, and can be reliably combined according to user needs. They realize the characteristics of full sealing, full protection, full insulation, anti condensation, dust prevention, corrosion resistance, and maintenance free, and can operate outdoors all day long.

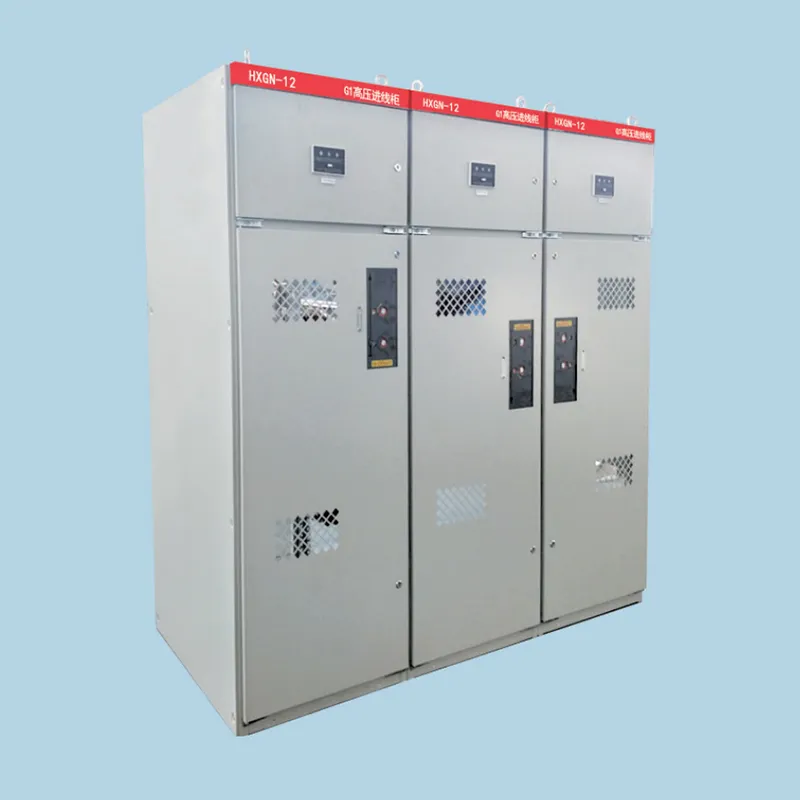

HXGN-12 BOX TYPE FIXED AC METAL-ENCLOSED RING-NETTWORK SWITCHGEAR
The HXGN-12 AC metal enclosed ring network switchgear (referred to as ring network cabinet) is a newly designed and successfully developed high-voltage electrical product in accordance with the requirements of domestic rural and urban power grid transformation.

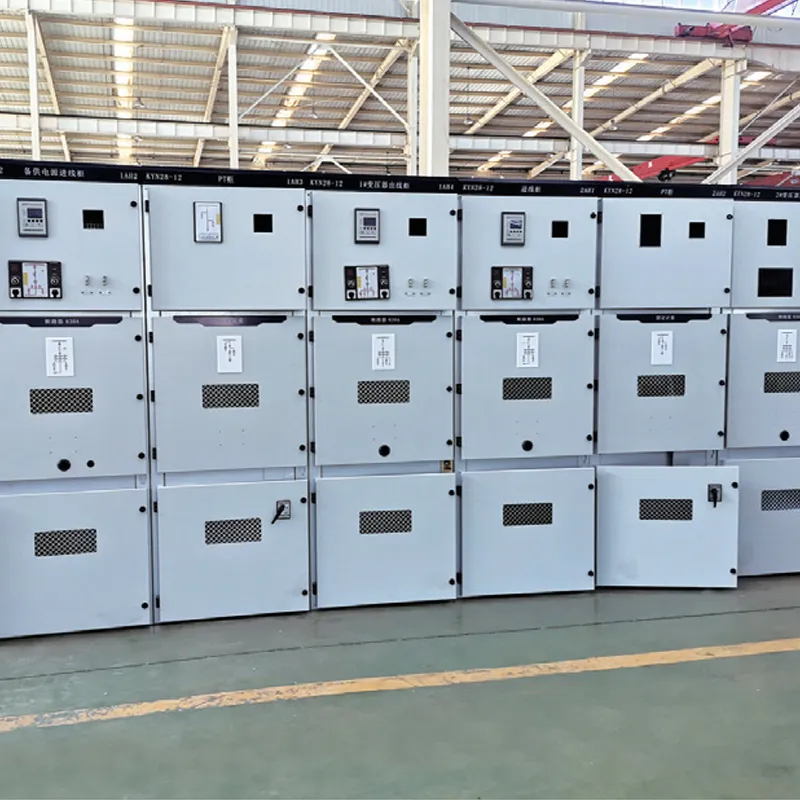

KYN28-12 ARMORED REMOVABLE AC METAL-ENCLOSED SWITCHGEAR
The KYN28-12 armored movable AC metal enclosed switchgear is a complete set of distribution equipment for 3-12 kV three-phase AC single busbar and single busbar segmented systems. Mainly used for power plants, transmission of small and medium-sized generators, distribution of industrial and mining enterprises and institutions, and secondary substations of power systems for receiving and transmitting electricity, as well as starting large high-voltage motors.

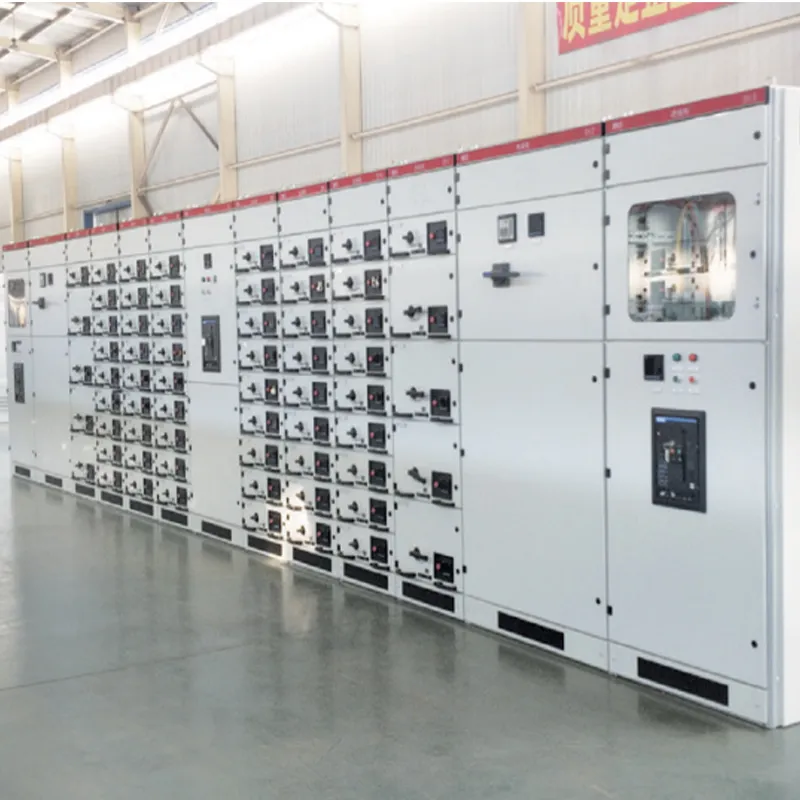

MNS LOW-VOLTAGE DRAW-OUT SEITCH CABINET
